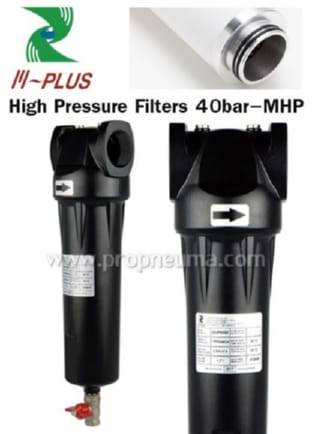

High Pressure Filters 40bar – MHP

For high pressure systems (40 bar). The strong mechanical resistance makes this filter the ideal initial protection of a compressed air system to retain impurities and, for example, it is suitable as a post-filter for adsorption dryers.

ELEMENT FILTER GRADES
C - Cyclone type condensate separators. Downstream of an air compressor/Booster/After cooler/Receiver.
Q - Pre-filter suitable for the removal of solid particles down to 25 micron.
P - Pre-filter suitable for the removal of solid particles down to 5 micron including liquids, emulsions and oil particles.
S - Interception type filters suitable for solid and oil particles up to 1 micron - 0,1 mg/m³.
X - Interception type filters suitable for solid and oil particles up to 0,01 micron - 0,01 mg/m³.
Z - Activated carbon filter for the elimination of oil vapours and odour. When installed before X grade filter, it lowers the maximum contents of residual oil 0.003 mg/m3.


STANDARD CONDITIONS

• Ambient temperature: 25°C
• Working pressure: 40 bar
• Inlet air temperature: 20°C
• Max inlet air temperature 100°C (60°C on Z)
